Drum Brake Wheel Cylinder
Wheel cylinder used in drum brake systems to push the brake shoes outward and generate braking force.
Product view 1
1 / 6
- Weight
- 0.6–1 kg/pc
- MOQ
- 1000 pcs
Wheel cylinder used in drum brake systems to push the brake shoes outward and generate braking force.
One wheel cylinder product family with order-specific variants and customisation.
Specification
What we can confirm today
Weight and MOQ are listed as supplied. Other dimensions depend on the drawing or sample you send.
- Type
- Drum brake wheel cylinder
- Weight
- 0.6–1 kg/pc
- Inspection
- Inspection report on request; buyer-arranged third-party inspection supported
- Production
- Custom production; OEM/ODM
- MOQ
- 1000 pcs
Construction

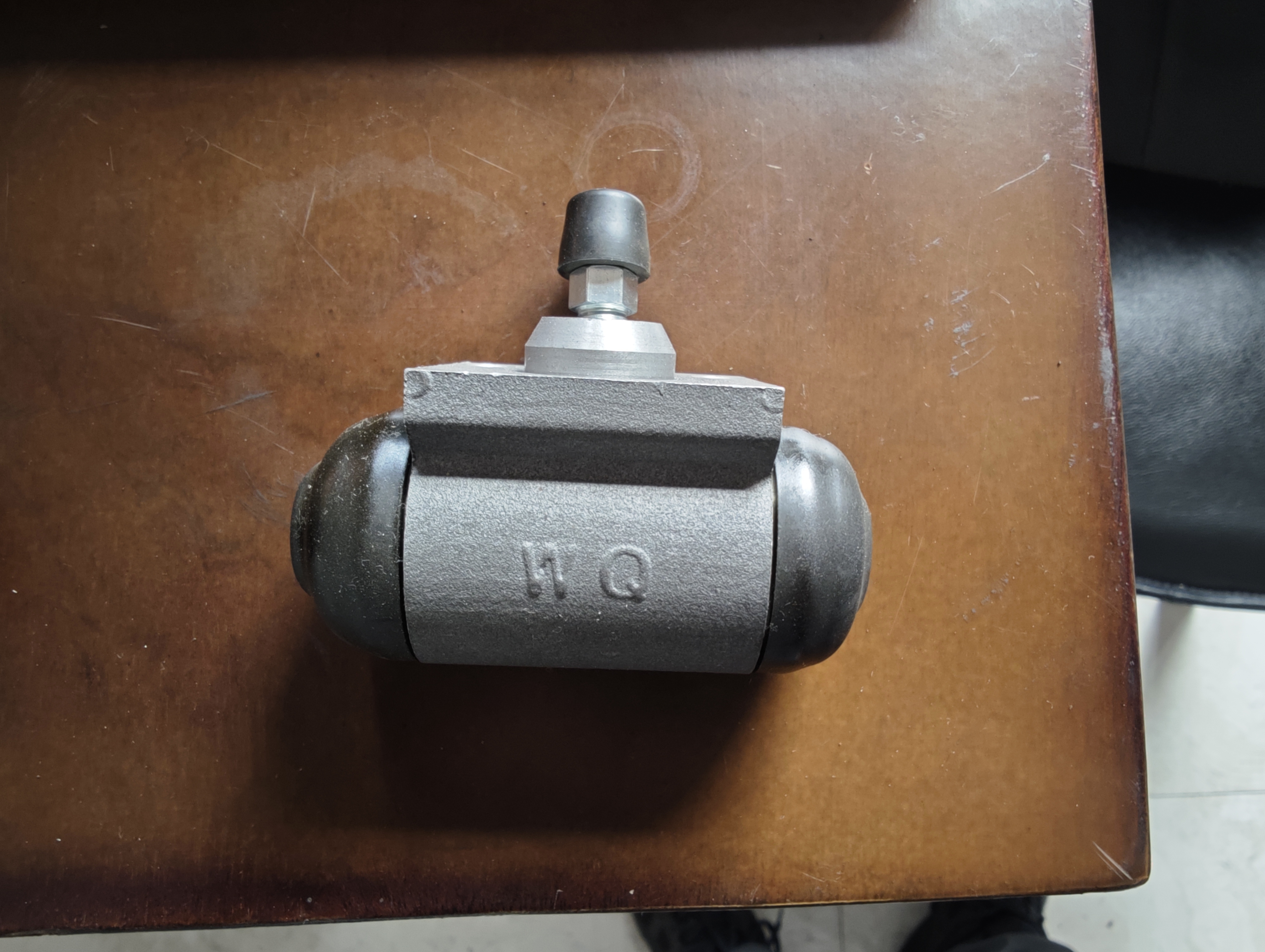

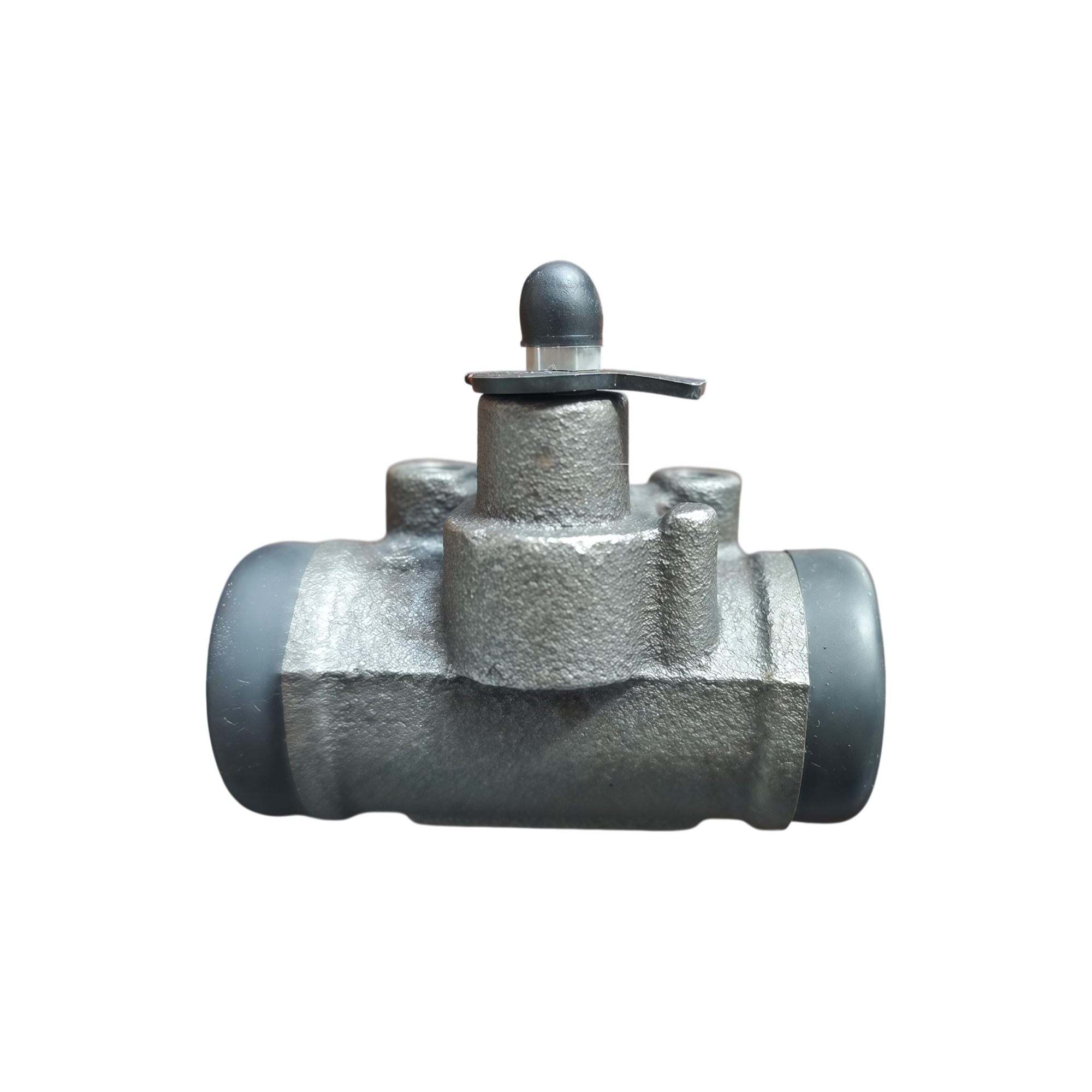

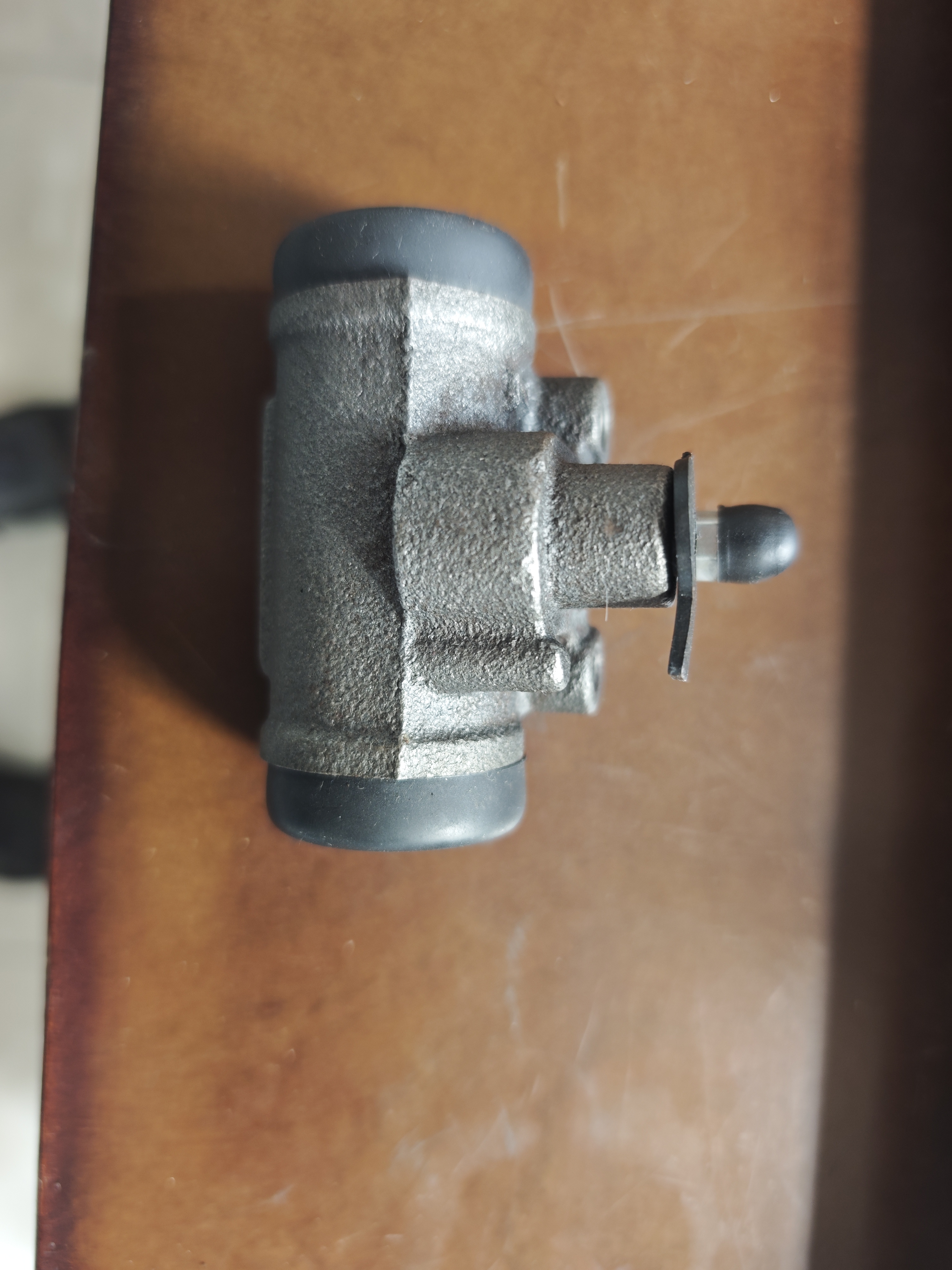

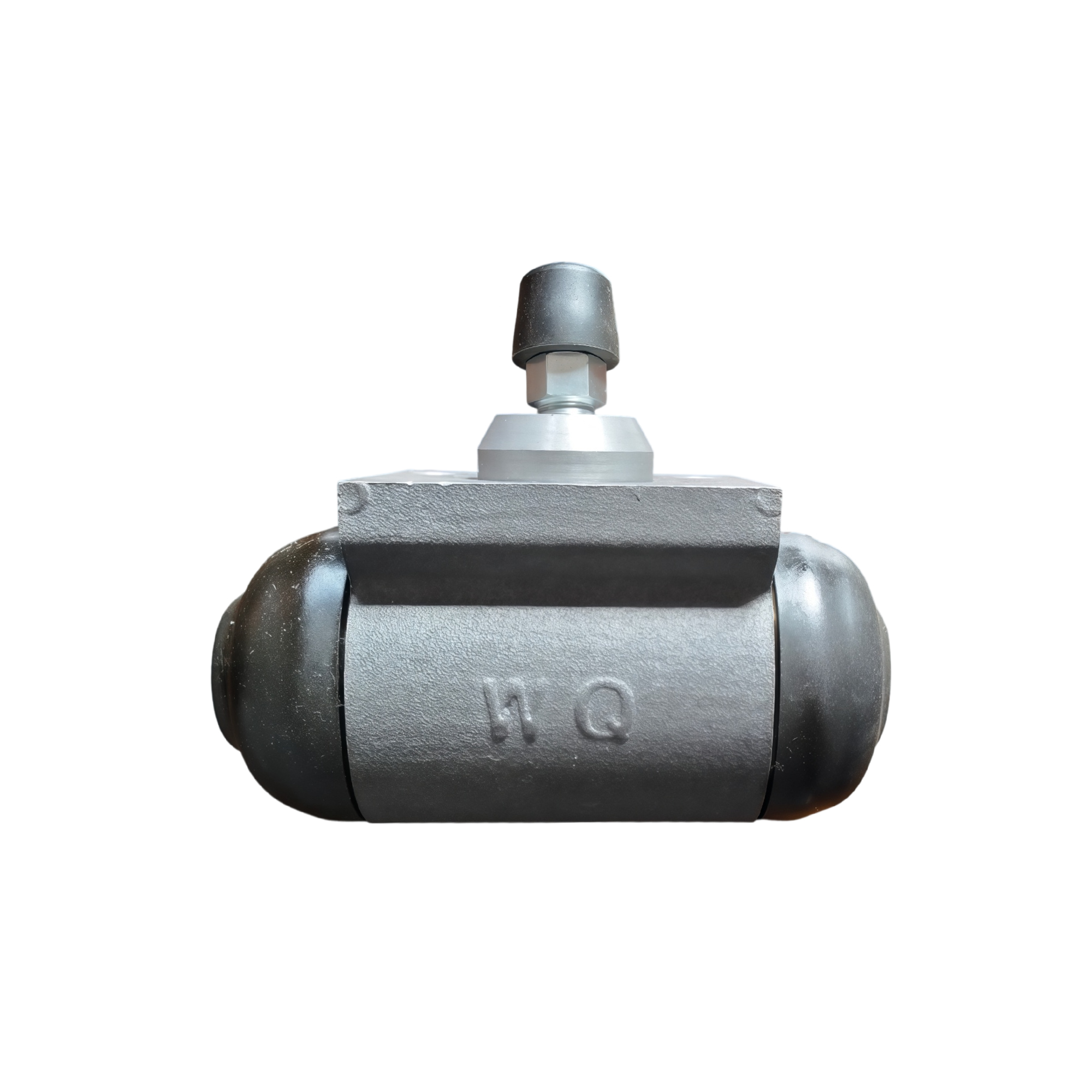

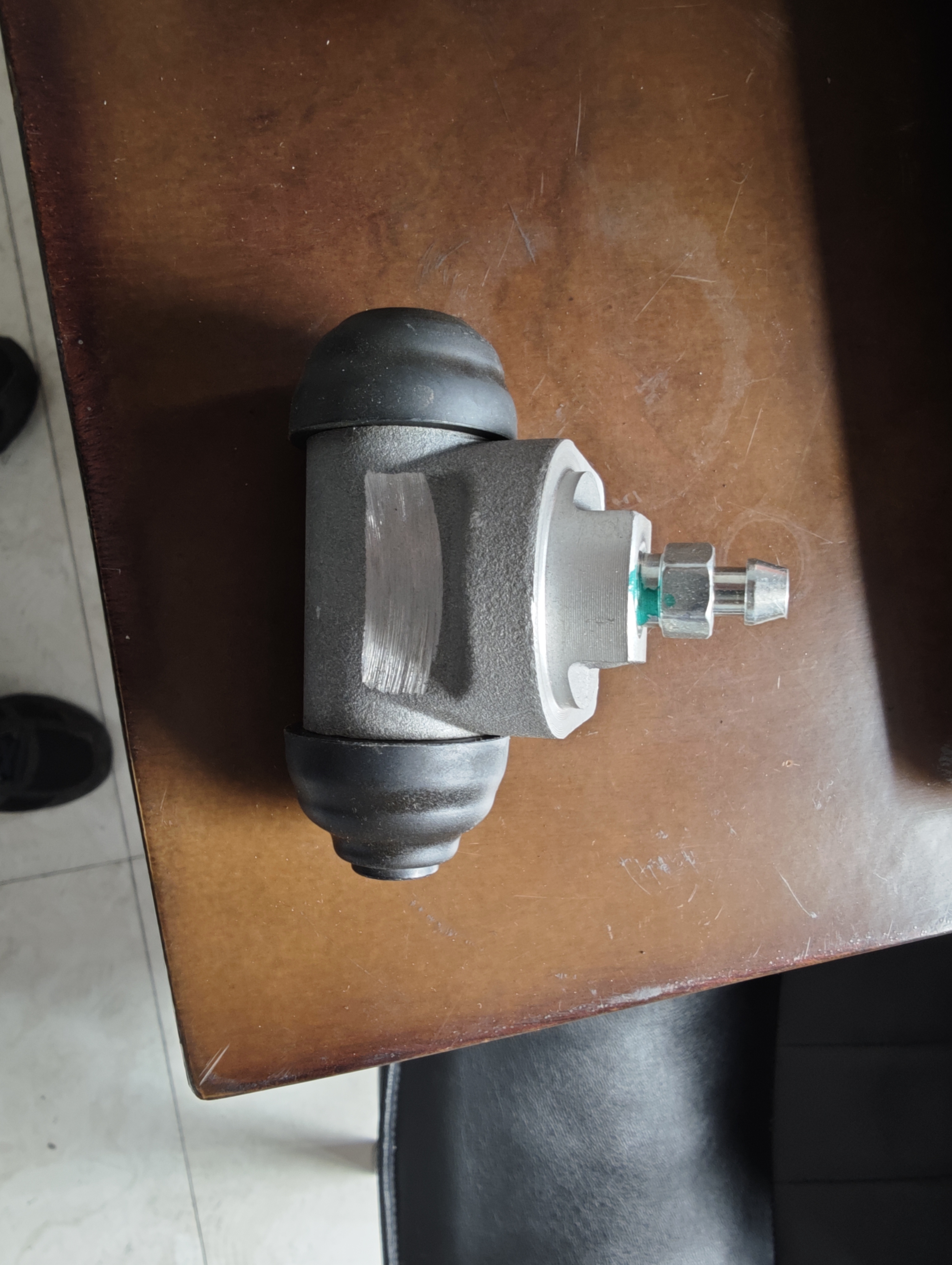

Visible in the photos
Cast housing with a machined bore area
Rubber boots cover both ends of the cylinder
Bleeder fitting visible in the supplied product photos
Questions
Buyer questions, answered
The basics on the part, ordering and inspection. Anything else, ask us.
What does a wheel cylinder do in a drum brake?
It converts hydraulic pressure from the brake line into mechanical force. Its pistons push outward and press the brake shoes against the inside of the drum.
What is the minimum order quantity?
The MOQ is 1000 pcs.
Can you make a wheel cylinder to my drawing or sample?
Yes. Custom production and OEM/ODM are supported. Send a drawing or sample details with your enquiry and we will confirm the specification with you.
Do you provide inspection reports?
Yes, inspection reports are available, and third-party inspection is supported. Mention your inspection requirement in your enquiry.
How heavy is the wheel cylinder?
The wheel cylinders we supply range from 0.6 to 1 kg per piece (0.6–1 kg/pcs), depending on the part.
Where can I see prices?
This site is for enquiries, so prices are not published. Send your requirement through the quote form and we will respond to you directly.
Request a quote
Tell us what you need
Four fields and a security check. Send a drawing or sample description and the quantity you have in mind.
